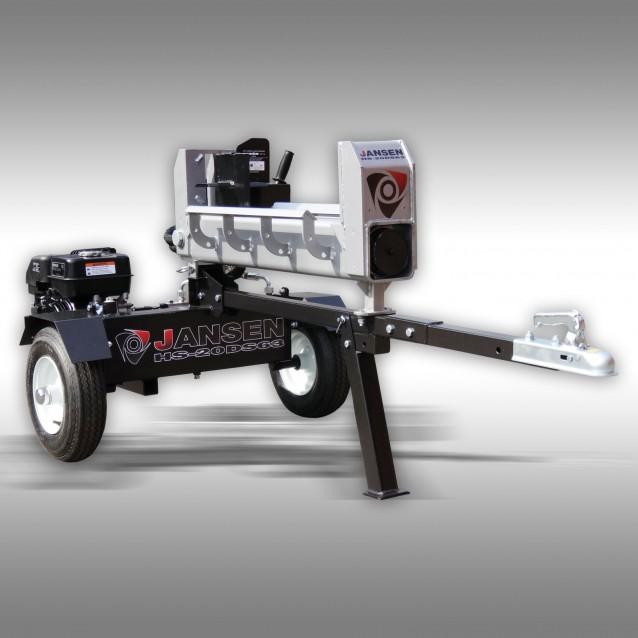

JANSEN HS-20DS63 VEDKLØYVER DOBBELTVIRKENDE

JANSEN HS-20DS63 BENSINDREVET VEDKLØYVE

20T Dobbeltvirkende vedkløyve

Vedkløyve som kløyver begge veier, både tur/retur. 20T tur/ 17T retur

En liten revolusjon blant vedkløyver.

Technical specifications:

4-stroke Kohler OHV motor, 6.5 HK, 4.8 kW
Bensin
Tank: 3.6 litres
Forbruk: 1.0 – 1.2 L/h
Starter: Recoil starter
Weight: Approx. 180 kg without fluids
Weight including packing: 210 kg
Towing speed: Max. 25 km/h
Max. log opening: 60 cm
Cylinder speed for one phase: approx. 7 sec.
Splitting force: 20/17 tons (measured value)
Splitting wedge, length: 20 cm (included in delivery)
Dimensions of packaging: 133x80x59 cm (LxWxH)
Amount of engine oil: Approx. 1L (10W40 or 15W40)
Amount of hydraulic oil: Approx. 10L (HLP46)
Hydraulic pump: 2 levels
Output of hydraulic system: 38.6L/min
Hydraulic pressure: 240 bar
Tyres: 10 inches
Dimensions: 228x102x100 cm (LxWxH)
Height of wood loading surface: 65 cm

Påregn 1-2 timer montering

Ta kontakt for pris levert ferdig klargjort og testet
